DMO product information sheet Catalogue date 23 Aug 2026

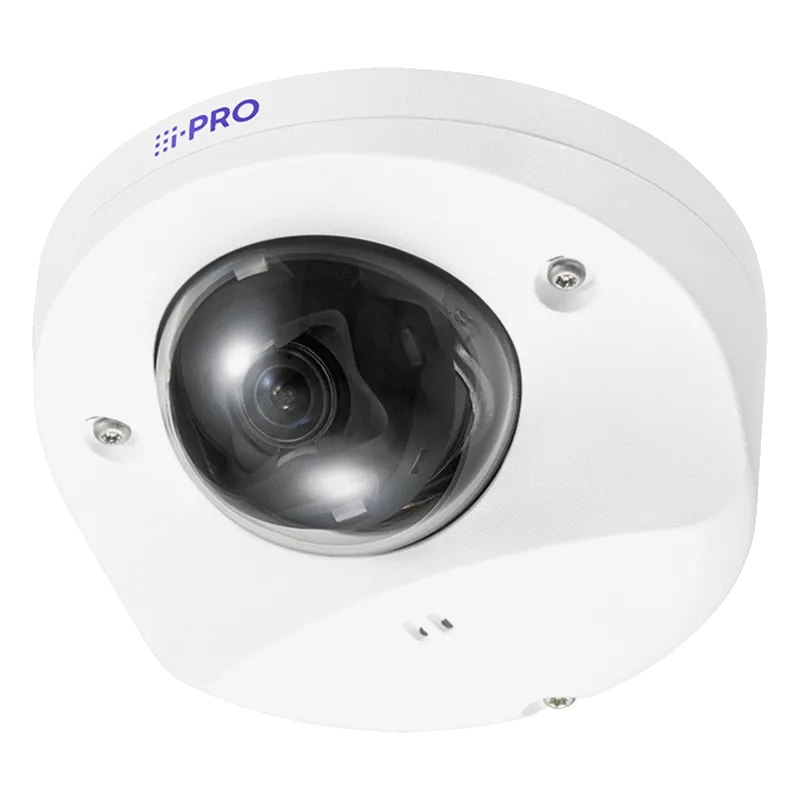

i-PRO WV-U35401-F2L

The i-PRO WV-U35401-F2L compact dome IP camera provides reliable outdoor monitoring with its all-in-one design and IR LED night vision.

DMO product code: 130602-K6285
Brand: i-PRO
Category: DMO security cameras
Contract period: 19 Aug 2026–19 Aug 2028
DMO record address: https://www.dmo.gov.tr/Katalog/Urun/Detay/6792399_1275020

View the DMO record

About this product

The i-PRO WV-U35401-F2L is an outdoor dome camera of the U Series, offering high-resolution performance in a compact and economical housing. Its 4 MP (2560 × 1440) resolution lets you monitor large outdoor areas with crystal clarity. Its 2.4 mm fixed lens, which offers an ultra-wide 128° horizontal field of view, minimises blind spots in large sites such as car parks, building facades and commercial areas, providing maximum coverage with a single device. Equipped with IP66 sealing against harsh weather and IK10 vandal-resistance certification against physical interference, this device delivers reliable performance in every season. The built-in 14 metre IR LED illumination provides night vision in complete darkness, while H.265 smart coding technology optimises storage and bandwidth costs. With its FIPS 140-2 Level 3 compliant cybersecurity infrastructure, the WV-U35401-F2L suits professional projects looking for an economical, durable and high-resolution outdoor monitoring solution.

Technical specification

Technical specification
Attribute	Value
Identification
Series	U Series
Camera type	Dome
Environment	Outdoor
Mounting type	Ceiling, Wall
Signal type	IP network
Imaging
Resolution	4 MP
Maximum resolution	2688 × 1520
Sensor type	1/2.8″ CMOS
Backlight masking	Yes
Dynamic range	102 dB
Compression type	H.265, H.264, JPEG
Wide dynamic range	Yes
Day/night	Yes
Automatic gain control	Yes
Automatic white balance	Yes
Backlight compensation	Yes
Digital noise reduction	Yes
Optics
Lens type	Fixed
Lens size	2.4 mm
Optical zoom	1×
Digital zoom (optical included)	4×
Infrared range	14 m
Illuminator type	IR
Smart IR	Yes
Image analysis
Face detection	No
Defog	Yes
Image flip	Yes
Motion detection	Yes
Privacy masking	No
Privacy zone	Yes
On-screen display menu	Yes
Network
Network interface	10BASE-T/100BASE-TX, RJ45
Protocols	IPv4, IPv6, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, SNMPv1/v2/v3, DHCP, DHCPv6, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, FTP, SFTP, MQTT, MLD
SD card	microSD, microSDHC, microSDXC
ONVIF	Yes
Power
Power source	PoE IEEE802.3af
Power consumption	5.3 W
Environment and protection
Protection type	IP66, IK10
Protection standards	IEC 60529, IEC 62262, UL50E Type 4X, NEMA 4X
Housing	Die-cast aluminium body, Polycarbonate front panel
Heater	No
Fan	No
Stand	No
Inputs and outputs
Alarm input	No
Alarm output	No
Microphone input	No
Analogue video output	No
Physical
Operating temperature (min)	−30 °C
Operating temperature (max)	50 °C
Weight	0.45 kg
Dimensions	109 × 53 × 109 mm
Advanced
Advanced functions	Intelligent auto, Defogging, Smart coding, NDAA compliant
Other features	Built-in IR LED, Built-in microphone, Ambarella S3LM SoC
