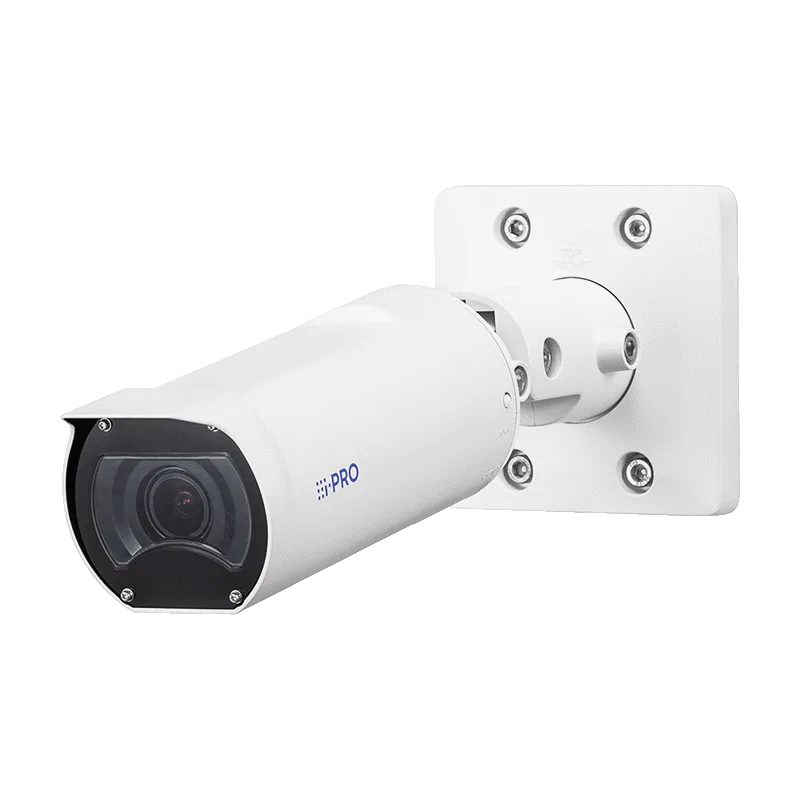

The i-PRO WV-U15301-V3L Edge AI bullet IP camera offers effective monitoring and fast incident detection, thanks to its design for outdoor use and analytics at the edge.
The i-PRO WV-U15301-V3L is a professional 2 MP Full HD outdoor bullet camera that combines the budget-friendly U Series standards with advanced Edge AI (artificial intelligence at the edge) capabilities. Its built-in AI engine classifies people and vehicles directly on the camera, filtering out false alarms and automating smart analysis processes. Integrated IR illumination provides clear vision even in pitch darkness, and its construction, resistant to harsh weather (IP66), delivers reliable performance outdoors. Equipped with i-PRO’s uncompromising cybersecurity protocols and Smart Coding technology, this model is a monitoring solution that is both smart and economical for homes, small businesses and perimeter security projects.
| Attribute | Value |
|---|---|
| Identification | |
| Series | U Series |
| Camera type | Bullet |
| Environment | Outdoor |
| Mounting type | Wall, Pole |
| Signal type | IP network |
| Imaging | |
| Resolution | 2 MP |
| Maximum resolution | 1920 × 1080 |
| Sensor type | 1/2.8″ CMOS |
| Backlight masking | Yes |
| Dynamic range | 120 dB |
| Compression type | H.265, H.264, JPEG |
| Wide dynamic range | Yes |
| Day/night | Yes |
| Automatic gain control | Yes |
| Automatic white balance | Yes |
| Backlight compensation | Yes |
| Digital noise reduction | Yes |
| Optics | |
| Lens type | Motorised |
| Lens size | 10.2 mm |
| Optical zoom | 3.2× |
| Digital zoom (optical included) | 9.6× |
| Infrared range | 42 m |
| Illuminator type | IR |
| Smart IR | No |
| Image analysis | |
| Face detection | No |
| Defog | Yes |
| Image flip | Yes |
| Motion detection | Yes |
| Privacy masking | No |
| Privacy zone | Yes |
| On-screen display menu | Yes |
| Network | |
| Network interface | 10BASE-T/100BASE-TX, RJ45 |
| Protocols | IPv4, IPv6, HTTP, HTTPS, SSL/TLS, RTSP, RTP, SMTP, SNMPv1/v2/v3, DHCP, DNS, DDNS, NTP, UPnP, IGMP, FTP, SFTP, MQTT, LLDP, IEEE 802.1X |
| SD card | microSD, microSDHC, microSDXC |
| ONVIF | Yes |
| Power | |
| Power source | PoE IEEE802.3af |
| Power consumption | 9.6 W |
| Environment and protection | |
| Protection type | IP66, IK10 |
| Protection standards | IEC 60529, IEC 62262, UL50E Type 4X, NEMA 4X |
| Housing | Die-cast aluminium body, Polycarbonate resin body, Polycarbonate front panel, Stainless steel external screws |
| Heater | No |
| Fan | No |
| Stand | No |
| Inputs and outputs | |
| Alarm input | No |
| Alarm output | No |
| Microphone input | No |
| Analogue video output | No |
| Physical | |
| Operating temperature (min) | −30 °C |
| Operating temperature (max) | 50 °C |
| Weight | 1 kg |
| Dimensions | 112.5 × 112.5 × 298.5 mm |
| Advanced | |
| Advanced functions | i-VMD, FIPS 140-3 Level 3 SecureElement, NDAA compliant, Easy Kitting |
| Other features | Built-in IR LED |
